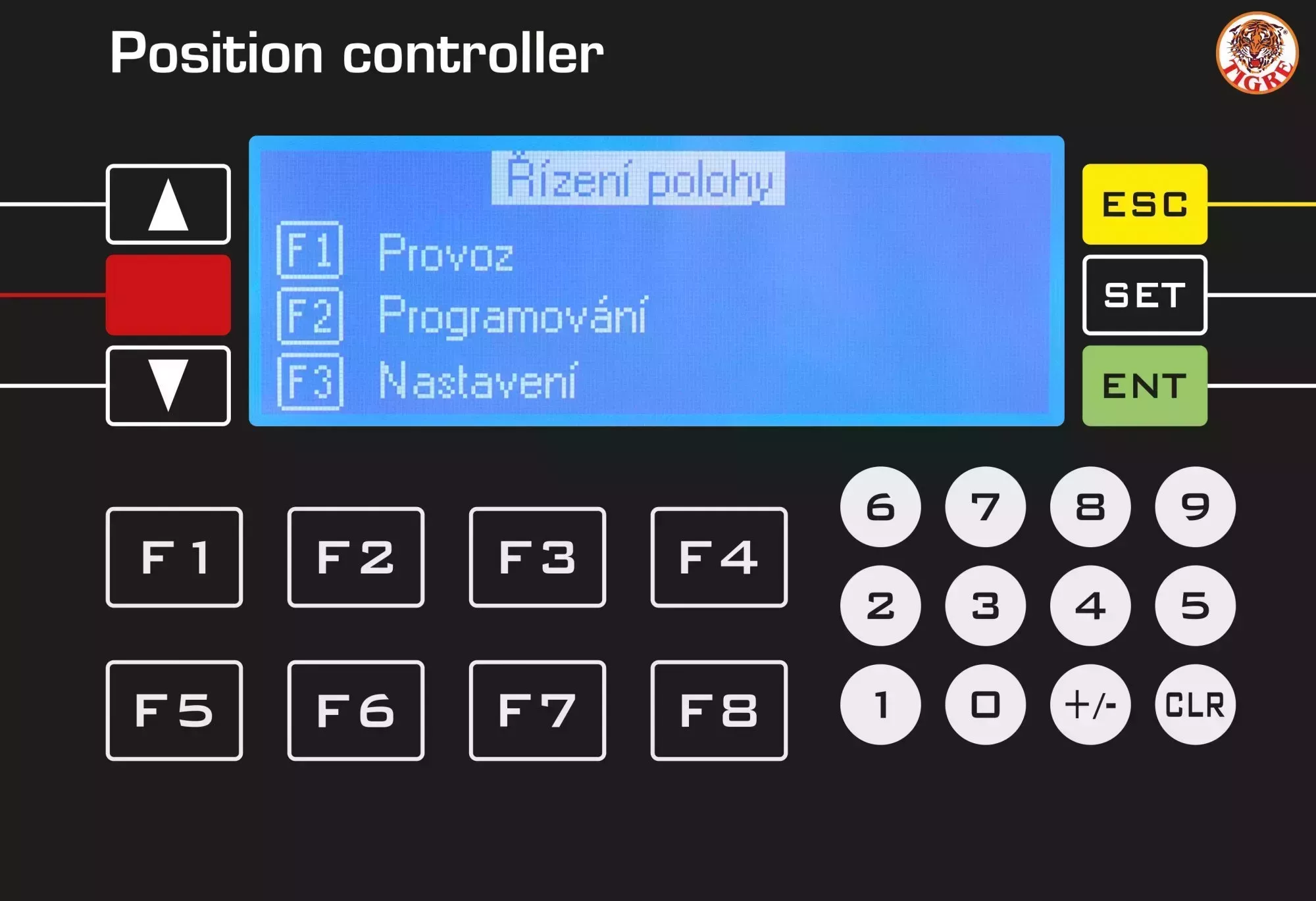

Product description

The position controller enables to control a drive (up to three motor speeds) in dependence on position of a linear encoder or directly using a stepping motor.
In case of a drive with a linear encoder 4 output relays are controlled. In case of a drive with a stepping motor 4 open collector outputs are controlled.
Possibility to produce the program according to customer needs.

Description:

• compact position controller
• 3.7" highly legible blue monochromatic display
• input frequency: 80 kHz (can be increased using a special interface)
• 24 VDC power supply or 230VAC mains adapter

Drice control:

• actual position display, target position display
• start / stop function
• machine movement in steps (manually) or in a loop (automatically)
• zoom of the actual position display and target position display

Programming:

• 6 position programming
• selectable time delay between cycles
• selectable 2 slow-down points for 3 motor speeds
• selectable tolerance of positioning

Modes:

• positioning on the base of linear encoder or stepping motor control

Lin. encoder setting:

• return to reference point
• encoder resolution setting, conversion coefficient setting
• direction of measurement setting
• one-side positioning advanced switch-off

Stepper setting:

• initial position
• counting direction
• number of pulses per mm
• max. frequency in Hz
• start/end ramp in ms
